35mm F2.0
MWIR Athermalized Lens 35mm F2.0 -Fit 15μm, 1280×1024 -Athermalized(-40℃～60 ℃) -Compact design
Datasheets Download
Message Inquiry
MWIR Athermalized Lens
35mm F2.0
-Fit 15μm, 1280×1024
-Athermalized(-40℃～60 ℃)
-Compact design
| Parameters | Notes | |
| Optical | ||
| Focal Length | 35mm | |
| F# | 2.0 | |
| Image Size/CSH(Cold Screen height) | 19.2x15.36mm/30mm | |
| Spectral Range | 3μm~5um | |
| FOV | 30.7°x20.8° | 1280x1024,15μm |
| Front Surface Coating | AR | DLC(optional) |
| Optical Length | 83.9mm | |
| BFL(Back Focus Length) | 41.0mm | |

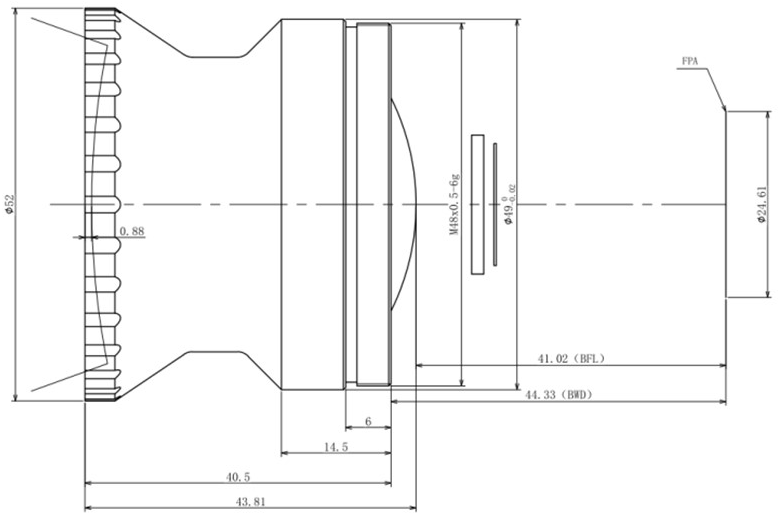

| Mechanical | ||
| BWD(Back Work Distance) | 44.33mm | |
| MOD(Minimum Foucsing Distance) | 1m~Infinity | |
| Weight | ≤144g | |
| Dimensions | Φ52mmx43.8mm | |
| Environment | ||
| Operation Temperature | -40℃~+60℃ | |
| Storage Temperature | -45℃~+65℃ | |
| Sealing | IP64 | front element only |
