25mm F2.0
LWIR Fixed Athermalized Lens 25mm F2.0 -Capable of switching between MW and LW -Clear images -No Narcissus Effect
Datasheets Download
Message Inquiry
LWIR Fixed Athermalized Lens
25mm F2.0
-Capable of switching between MW and LW
-Clear images
-No Narcissus Effect
| Parameters | Notes | |
| Optical | ||
| Focal Length | 25mm | |
| F# | 2.0 | |
| Image Size/CSH(Cold Screen height) | 9.6mmx7.68mm/19mm-21mm | |
| Spectral Range | 3μm~5um or 8-12um | |
| FOV | 11.0°x8.8° | 640x512,15μm |
| Front Surface Coating | AR | MW and LW, DLC (optional) |
| Optical Length | 50.2mm | |
| BFL(Back Focus Length) | 29.82mm | |
| Mechanical | ||
| BWD(Back Work Distance) | 28.4mm | |
| MOD(Minimum Foucsing Distance) | 1m~Infinity | |
| Weight | ≤40g | |

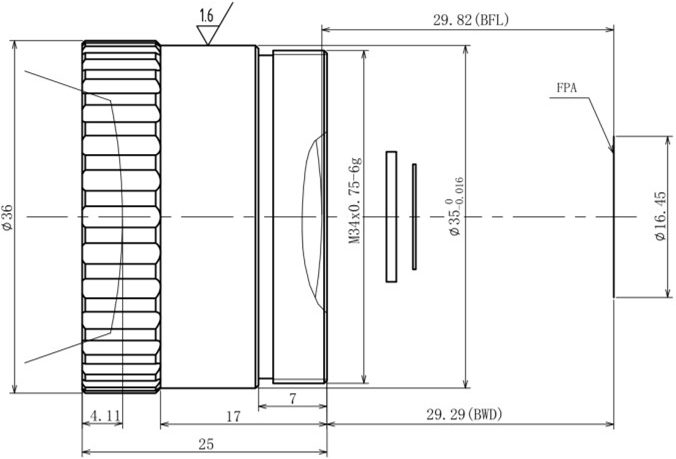

| Dimensions | Φ36mmx25mm | |
| Environment | ||
| Operation Temperature | -40℃~+60℃ | |
| Storage Temperature | -45℃~+65℃ | |
| Sealing | IP67 | front element only |
