280APC-1550
FC/APC Collimation Package 280APC-1550 -High Quality Of Laser Beam -Compact and lightweight -Wide Range Of OperatingTemperature
Message Inquiry
Prev：
Next：
FC/APC Collimation Package
280APC-1550
-High Quality Of Laser Beam
-Compact and lightweight
-Wide Range Of OperatingTemperature
| Parameters | Notes | |
| Optical | ||
| Focal Length | 37.15mm | CAN REPLACE THORLABSF810APC-1550 |
| NA | 0.24 | |
| THEORETICAL 1/e2 OUTPUT BEAMDIAMETER | 7mm | |
| THEORETICAL FULL ANGLE BEAM DIVERGENCE | 0.28mrad | |
| AR COATING | 1050-1620nm | |
| FIBER USED FOR ALIGNMENT | SMF-28e | |
| WAVELENGTH USED FOR ALIGNMENT | 1550nm | |
| Mechanical | ||

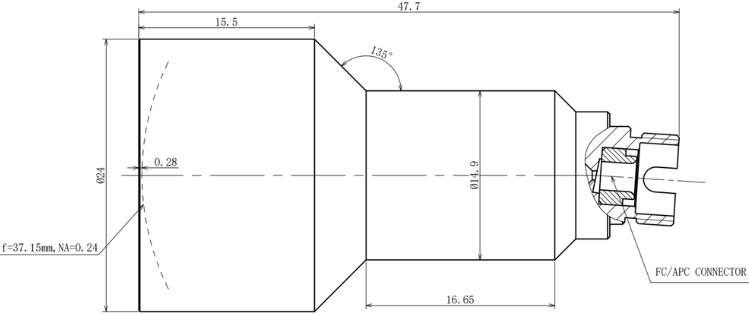

| Dimensions | Φ24mmx47.7mm | |
| Weight | 35g | |
| Environment | ||
| Operation Temperature | -40℃-+60℃ | |
| Storage Temperature | -45℃-+85℃ | |
| Sealing | IP65 | |
