FC/APC Collimation Package
550APC-1550
-High Quality Of Laser Beam
-Compact and lightweight
-Wide Range Of Operating Temperature
| Parameters | Notes | |
| Optical | ||
| Focal Length | 18.9mm | CAN REPLACE THORLABS F280APC-1550 |
| NA | 0.15 | |
| THEORETICAL 1/e2 OUTPUT BEAMDIAMETER | 3.6mm | |
| THEORETICAL FULL ANGLE BEAM DIVERGENCE | 0.55mrad | |
| AR COATING | 1050-1620nm | |
| FIBER USED FOR ALIGNMENT | SMF-28e | |
| WAVELENGTH USED FOR ALIGNMENT | 1550nm | |
| Mechanical | ||

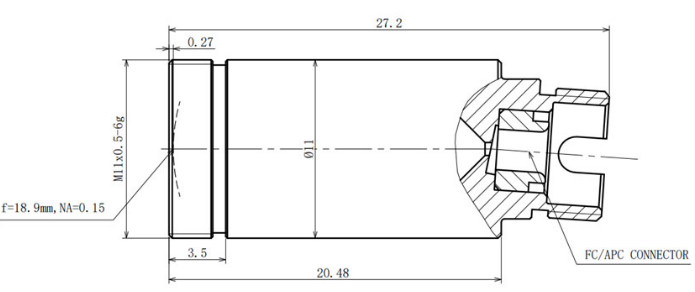

| Dimensions | Φ11mmx27.2mm | |
| Weight | 11g | |
| Environment | ||
| Operation Temperature | -40℃-+60℃ | |
| Storage Temperature | -45℃-+85℃ | |
| Sealing | IP65 | |
